vacuum chamber

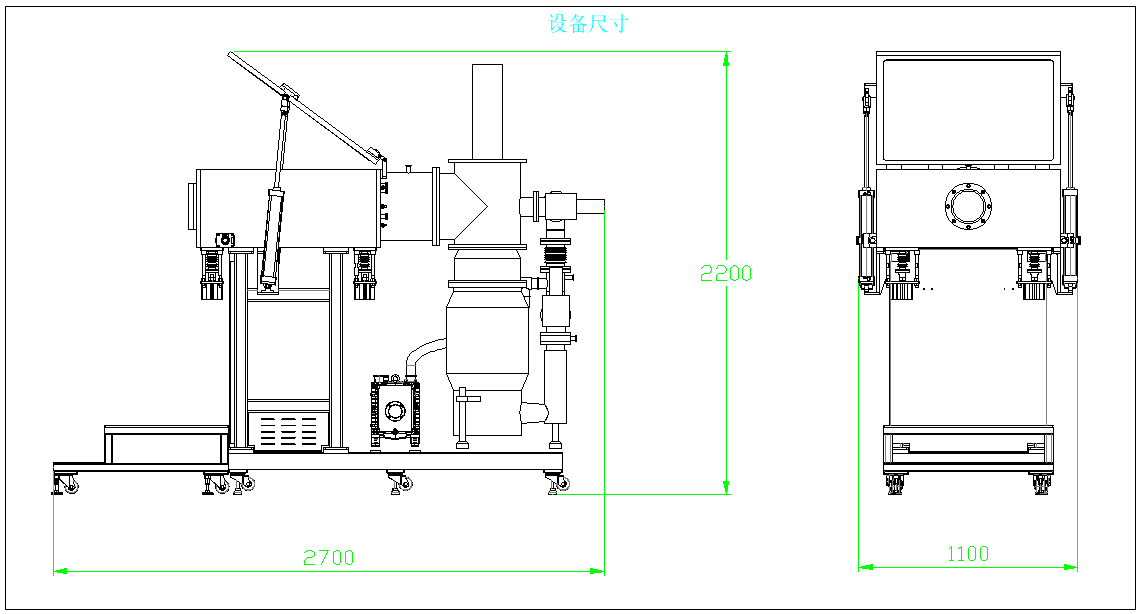

1. Sealing indoor specifications: length x width x height=850X850X360 mm (dimensions subject to actual conditions);

2. Main materials and specifications of sealing chamber: sus34008 stainless steel plate, thickness 8mm (inner wall polished)

3. The static pressure rise rate of the chamber is ≤ 10Pa/h;

4. The color of the external paint of the equipment can be selected by the customer.

Door flipping system

1. The chamber door adopts cylinder hinge flipping, which rotates smoothly;

2. The lifting speed of the cylinder is adjustable, with self-locking protection for air circuit interruption.

Sealing section

1. Maximum workpiece size ≤ 500 * 500mm;

2. The sealing knife is symmetrically configured on both sides, with an effective sealing width of 560mm;

3. The sealing knife adopts a 20mm wide nickel chromium alloy heating plate;

4. Sealing with 2 cylinder diameters Φ 80 cylinder.

vacuum system

1. The crude extraction pump adopts one Leibao single-stage rotary vane pump D60T, with a pumping speed of 17.2L/s and a power of 1.5kw;

2. Fine pumping adopts diffusion pump KT300, with a pumping speed of 4500L/s and a power of 3kw;

3. Fine drawing adopts a rough drawing pipeline with a diameter of DN80 and is equipped with a valve with a diameter of DN80;

4. Spool valve pump equipped with oil fume removal system;

5.Configure 1 water-cooled unit IC2750.

electronic control system

1. The operating system has two modes: manual and automatic, which can be freely switched according to needs;

2. Select Siemens or equivalent quality brands for PLC, and use domestically produced genuine products for other electrical components;

3. Each process parameter can be adjusted on the touch screen, and the production process parameters and output can be recorded;

4. The device can be configured with a remote monitoring system;

5. A pressure detection resistor gauge is installed at the outlet of the diffusion pump to provide safety protection;

6.The vacuum measurement system is equipped with a vacuum gauge and a resistance gauge.
